Shusse, Y., M. Maki, S. Shimizu, K. Iwanami, T. Maesaka, S. Suzuki, N. Sakurai, R. Misumi, 2015: Relationship between precipitation core behavior in cumulonimbus clouds and surface rainfall intensity on 18 August 2011 in the Kanto region, Japan. J. Meteor. Soc. Japan, 93, 215-228.
https://doi.org/10.2151/jmsj.2015-012

• Graphical Abstract with highlights
• Original PDF

Highlights:

• The behavior of the precipitation cores (PCOs) in three cumulonimbus clouds and their relationship with temporal variations in surface rainfall intensity are analyzed using 3D X-band dual-polarization radar data every 2 min. A PCO region was defined as a 3D contiguous region that contained one local maximum of horizontal radar reflectivity Zh. After the automatic detection and subjective tracking of PCO regions, 15 PCOs were identified during the total lifespan of the three cumulonimbus clouds.

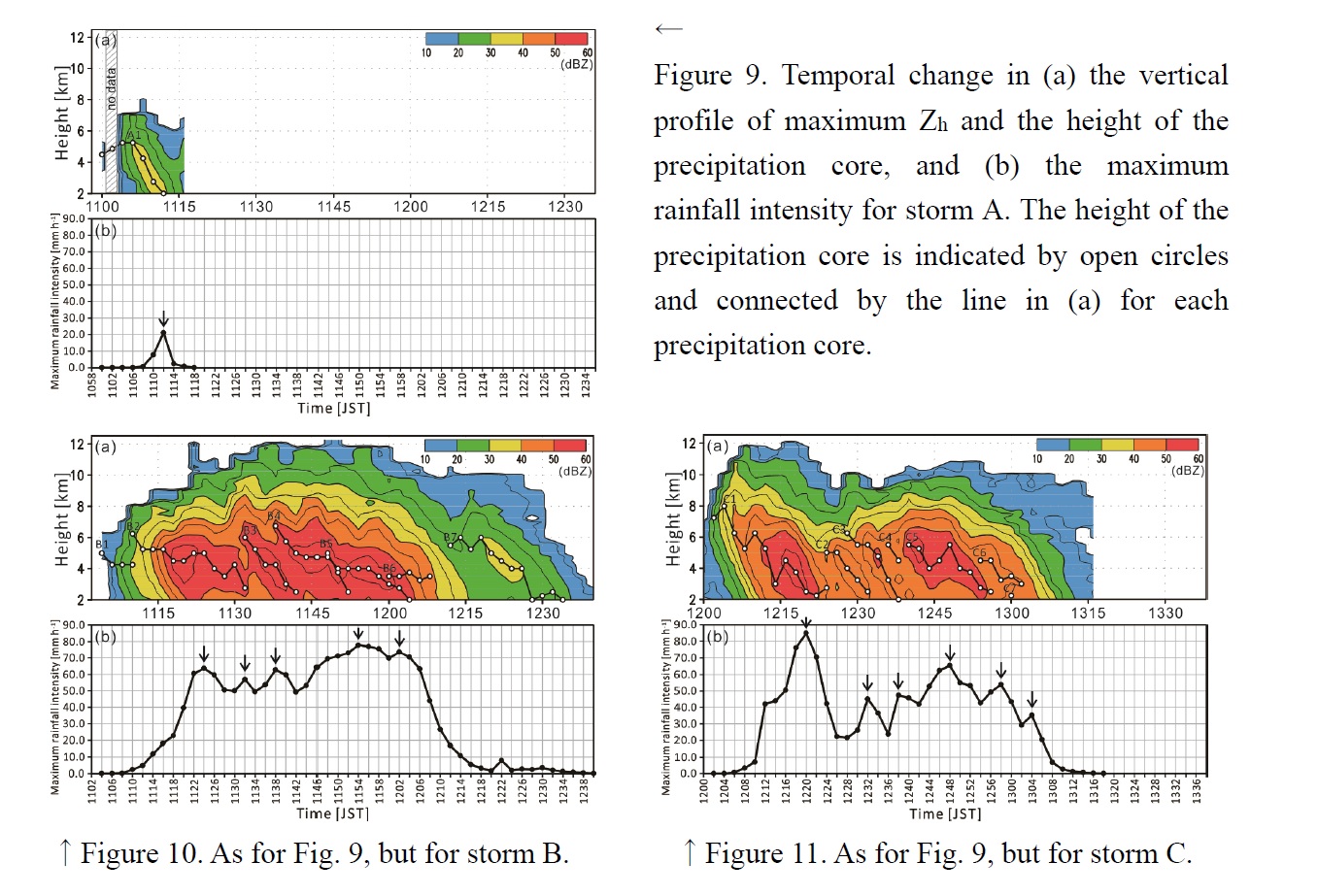

• The PCOs generally descended towards the ground after their appearance aloft (Figs. 9–11). Of the 12 temporal peaks in maximum surface rainfall intensity (>10 mm h–1) recorded from the three cumulonimbus clouds, 10 were associated with the descent of PCOs. In each cumulonimbus cloud, the first PCO was detected 10–12 min before the rainfall heavier than 10 mm h^–1 was recorded. These results indicate that the behavior of PCOs is closely related to the onset of strong surface rainfall and subsequent fluctuations in surface rainfall intensity.
